0.9M / 1.2M / 1.5M Wall Mounted Oscillating Fan (price on request)
- Regular price
- $0.00
- Sale price
- $0.00
- Regular price
-
- Unit price
- per
Product Spec Model Rated Voltage Rated Power Rated Current Diameter Max Speed Max Air Volume Sound Level Blade Qty Net Weight (N.W.) WM-57B 220V 50–60Hz 950W 4.8A 1.5M (57") 400...
22 people are viewing this right now
Type: Wall Mounted fan
Vendor:
Availability: In stock
Tags:
Wall Mounted fan
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over SGD$50
Care Instructions
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.
Share
Product Spec
| Model | Rated Voltage | Rated Power | Rated Current | Diameter | Max Speed | Max Air Volume | Sound Level | Blade Qty | Net Weight (N.W.) |
|---|---|---|---|---|---|---|---|---|---|
| WM-57B | 220V 50–60Hz | 950W | 4.8A | 1.5M (57") | 400 rpm | 720 m³/min | ≤ 65 dB (A) | 6 | 105 kg |
| WM-47B | 220V 50–60Hz | 500W | 2.5A | 1.2M (47") | 450 rpm | 420 m³/min | ≤ 65 dB (A) | 5 | 92 kg |
| WM-37B | 220V 50–60Hz | 500W | 2.5A | 0.9M (37") | 700 rpm | 280 m³/min | ≤ 65 dB (A) | 5 | 80 kg |
Product Features
-
Motor:
HKM FANS use DC brushless permanent magnet synchronous motors (PMSM), with protection grade IP55, energy efficiency rating IE3, and insulation class H. -
Inverter:
Equipped with HKM FANS variable frequency drive (VFD) with built-in safety protection modules. -
Fan Blades:
Made from aerospace-grade aluminum alloy 6063 / T5-T6. -
Certifications:
CE, RoHS, IEC, LVD, EMC, etc. -
Key Features:
When large industrial fans are not suitable due to space constraints (e.g., in canteens, farms, garages, workshops, or vehicle repair areas), the HKM FANS series provides an ideal solution to improve airflow and comfort. Its robust and durable structure makes it perfect for harsh ventilation environments. -
Applications:
-
Farms and livestock houses
-
Event venues and exhibition halls
-
Dairy and food production centers
-
Indoor sports arenas
-
Large churches and temples
-
Classrooms and cleaning rooms
-
Factories and other industrial environments
-
-

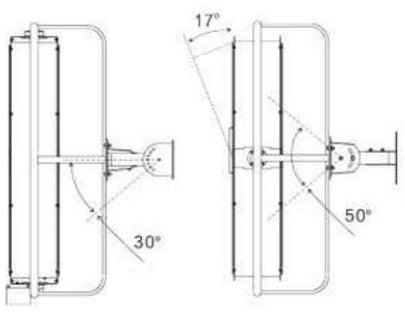

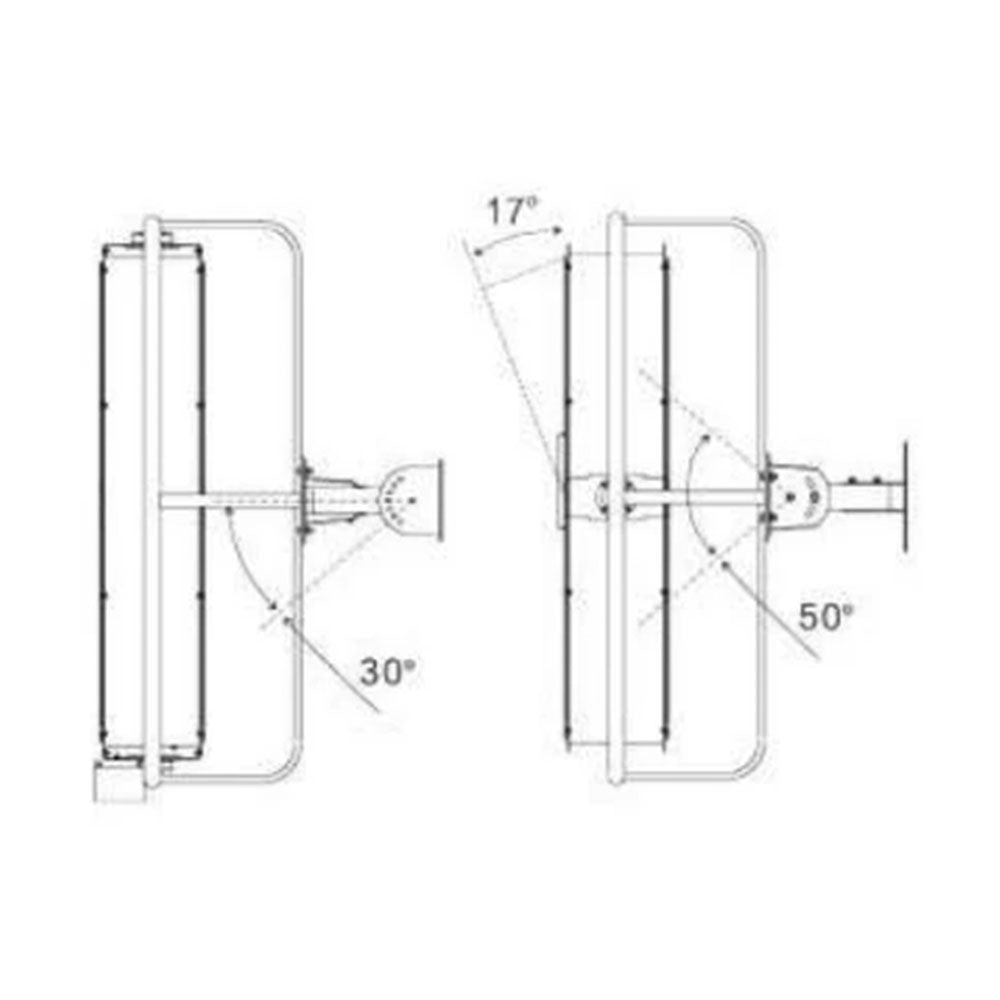

Oscillation Angles:
-
Vertical tilt: Up to 30°
-
Horizontal swing: Up to 50°
These adjustable angles allow for broader airflow coverage, efficiently improving air circulation and creating a more comfortable environment.
-
