HVLS Commercial Ceiling Fan (Thin Elite IV)(price on request)
- Regular price
- $0.00
- Sale price
- $0.00
- Regular price
-
- Unit price
- per
Thin Elite IV Series HVLS Commerical Ceiling Fan Engineered for high-performance in demanding industrial and commercial environments, the Thin Elite IV is an advanced HVLS ceiling fan that combines superior...
28 people are viewing this right now
Type: HVLS Ceiling Fan
Vendor:
Availability: In stock
Tags:
HVLS Ceiling Fan
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over SGD$50
Care Instructions
We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.
Share

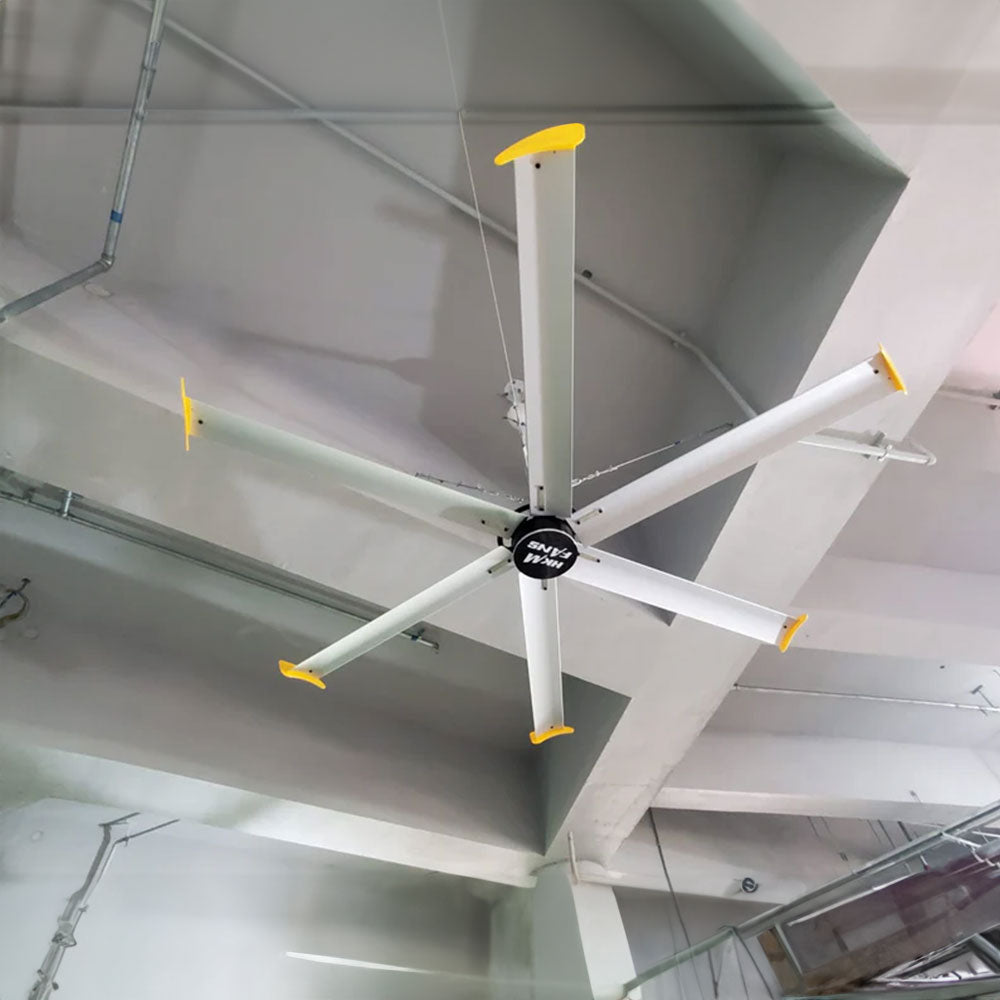

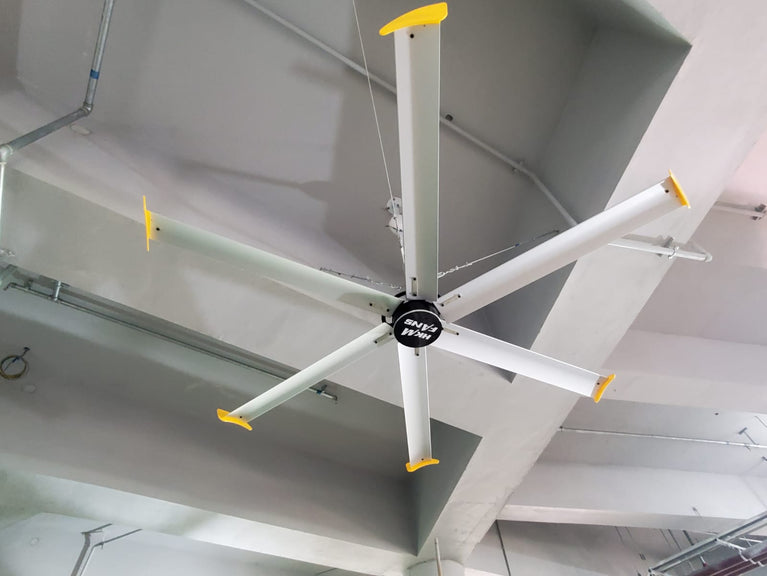

Thin Elite IV Series HVLS Commerical Ceiling Fan
Engineered for high-performance in demanding industrial and commercial environments, the Thin Elite IV is an advanced HVLS ceiling fan that combines superior airflow efficiency with a high-standard safety design and exceptional durability. Built for low-noise operation and long-lasting reliability, it is ideal for warehouses, factories, gyms, schools, exhibition halls, and other large-scale spaces where comfort, safety, and energy savings are equally critical.

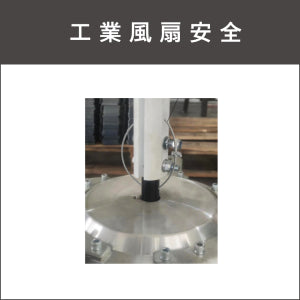

Six Core Safety Features
HVLS Fan Comparison
| Comparison Item |  |
 |
|---|---|---|
| Feature | Permanent Magnet HVLS Fan | Traditional Motor HVLS Fan |
| Dust & Water Resistance | IP65 – Advanced protection | IP54 – Basic resistance |
| Motor Type & Noise | Direct-drive synchronous motor, low noise | Asynchronous motor with gearbox, noisy |
| Installation Clearance | Compact design – requires only 50 cm | Bulky motor – requires 100 cm clearance |
| Weight & Safety | Lighter (as low as 23 kg) – safer | Heavier (48–102 kg) |
| Durability & Temperature | Runs 20°C cooler – longer lifespan | Higher temperature – shorter lifespan |
Fan Specifications – 6 Blades
| Technical Spec | 2.5m | 3.0m | 3.7m | 4.3m | 4.9m | 5.5m | 6.1m | 6.7m | 7.3m |
|---|---|---|---|---|---|---|---|---|---|
| Model | HKM-TE4-25 | HKM-TE4-30 | HKM-TE4-37 | HKM-TE4-43 | HKM-TE4-49 | HKM-TE4-55 | HKM-TE4-61 | HKM-TE4-67 | HKM-TE4-73 |
| Max Air Volume | 4200 m³/min | 5200 m³/min | 5900 m³/min | 7400 m³/min | 8900 m³/min | 10800 m³/min | 12200 m³/min | 13500 m³/min | 14900 m³/min |
| RPM Range | 150 RPM | 120 RPM | 95 RPM | 85 RPM | 70 RPM | 65 RPM | 60 RPM | 55 RPM | 50 RPM |
| Net Weight | 53 kg | 57 kg | 64 kg | 68 kg | 75 kg | 100 kg | 105 kg | 117 kg | 121 kg |
| Output Power | 800 W | 800 W | 850 W | 950 W | 950 W | 1000 W | 1200 W | 1400 W | 1500 W |
| Max Current | 3.6 A | 3.6 A | 3.9 A | 4.3 A | 4.3 A | 4.5 A | 5.5 A | 6.3 A | 6.8 A |
| Voltage | 220 V | 220 V | 220 V | 220 V | 220 V | 380 V / 220 V | 380 V / 220 V | 380 V / 220 V | 380 V / 220 V |
| Sound Level | ≤40 dB(A) | ≤40 dB(A) | ≤40 dB(A) | ≤40 dB(A) | ≤40 dB(A) | ≤40 dB(A) | ≤40 dB(A) | ≤40 dB(A) | ≤40 dB(A) |
Fan Specifications – 5 Blades
| Technical Spec | 2.5m | 3.0m | 3.7m | 4.3m | 4.9m | 5.5m |
|---|---|---|---|---|---|---|
| Model | HKM-STE4-25 | HKM-STE4-30 | HKM-STE4-37 | HKM-STE4-43 | HKM-STE4-49 | HKM-STE4-55 |
| Max Air Volume | 4100 m³/min | 5000 m³/min | 5700 m³/min | 7100 m³/min | 8850 m³/min | 11100 m³/min |
| RPM Range | 155 RPM | 125 RPM | 100 RPM | 90 RPM | 70 RPM | 65 RPM |
| Net Weight | 53 kg | 57 kg | 64 kg | 51 kg | 55 kg | 58 kg |
| Output Power | 550 W | 650 W | 700 W | 800 W | 800 W | 850 W |
| Max Current | 2.5 A | 3.0 A | 3.2 A | 3.6 A | 3.6 A | 3.8 A |
